Image shown is representative only. Exact specifications should be obtained from the product datasheet.

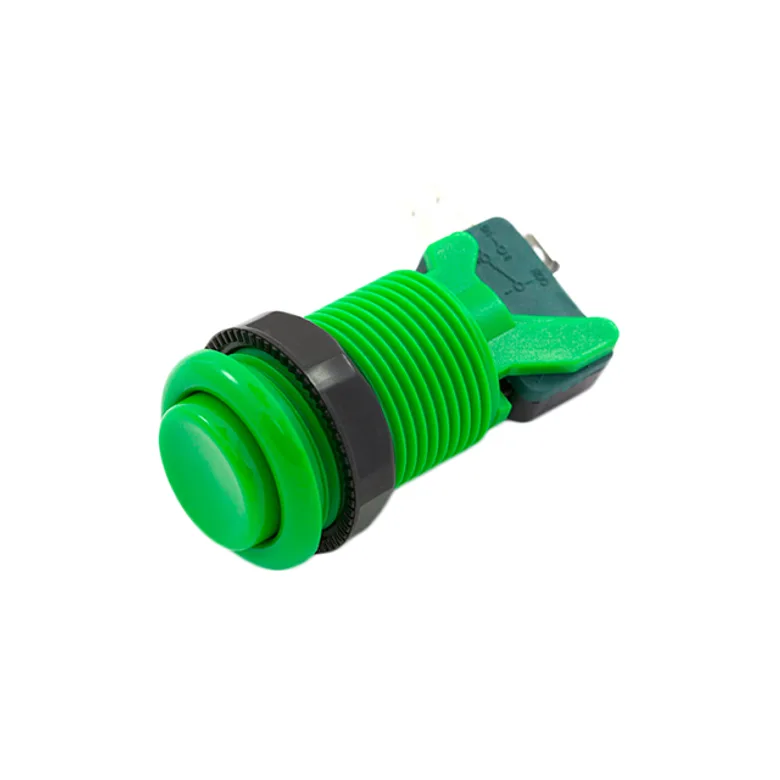

SparkFun Electronics 09341
Manufacturer
Manufacturer Product Number
09341
Description
SWITCH PUSHBUTTON SPDT 3A 120V
Manufacturer Standard Lead Time Contact us
Detailed Description
SWITCH PUSHBUTTON SPDT 3A 120V
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
SparkFun Electronics
Switch Function
On-Mom
Operating Temperature
-
Termination Style
Quick Connect - 0.187" (4.7mm)
Features
Arcade Style
Illumination Type, Color
-
Illumination Voltage (Nominal)
-
Actuator Type
Round, Button
Current Rating (Amps)
3A (AC)
Mounting Type
Panel Mount, Front
Ingress Protection
-
Panel Cutout Dimensions
Circular - 28.00mm Dia
Circuit
SPDT
Color - Actuator/Cap
Green
Mechanical Life
10,000,000 Cycles
Electrical Life
-
Actuator Marking
No Marking
Type
Standard
Voltage Rating - AC
120 V
Additional Resources
Attribute
Description
Part Number Alias
09341
6047820
1568-09341-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 53
Packaging Quantity Unit Price Ext Price
1 93.000Â â‚« 93.000Â â‚«
93.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
93.000Â â‚«
93.000Â â‚«
MOQ 1 · Order multiple 1
