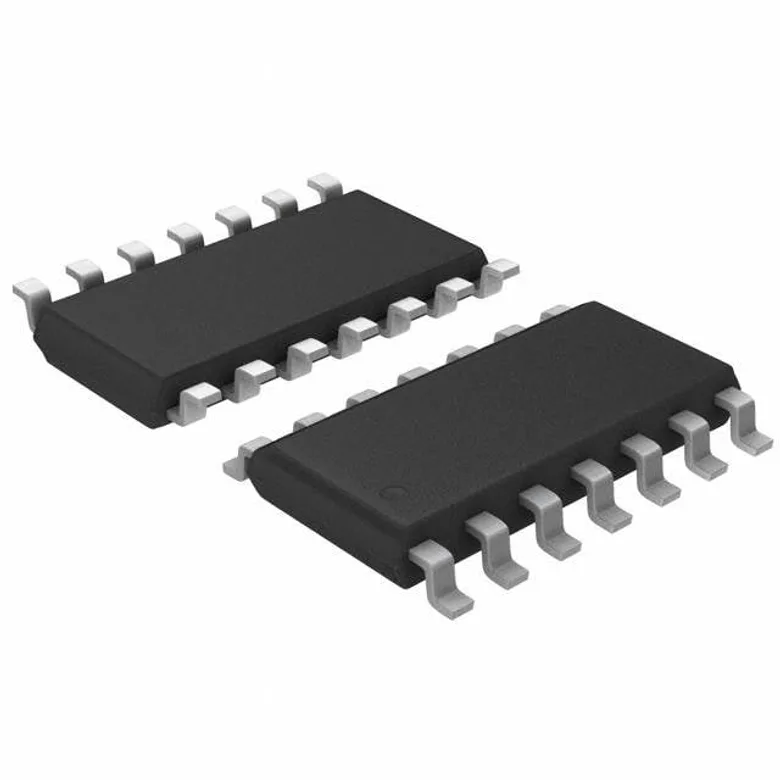

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics HCF4047M013TR
Manufacturer
Manufacturer Product Number
HCF4047M013TR
Description
IC AMV 1-CIR 125-NS 14-SO
Manufacturer Standard Lead Time Contact us
Detailed Description
Monostable Multivibrator 125 ns 14-SO
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Logic Type
Astable, Monostable
Operating Temperature
-55°C ~ 125°C
Propagation Delay
125 ns
Independent Circuits
1
Current - Output High, Low
6.8mA, 6.8mA
Mounting Type
Surface Mount
Supplier Device Package
14-SO
Schmitt Trigger Input
No
Package / Case
14-SOIC (0.154", 3.90mm Width)
Voltage - Supply
3 V ~ 20 V
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
HCF4047M013TR
585650
497-1126-2-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 12.000 ₫ 12.000 ₫
12.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
12.000 ₫
30.000.000 ₫
5,000
12.000 ₫
60.000.000 ₫
7,500
12.000 ₫
90.000.000 ₫
12,500
12.000 ₫
150.000.000 ₫
17,500
12.000 ₫
210.000.000 ₫
MOQ 2,500 · Order multiple 2,500
