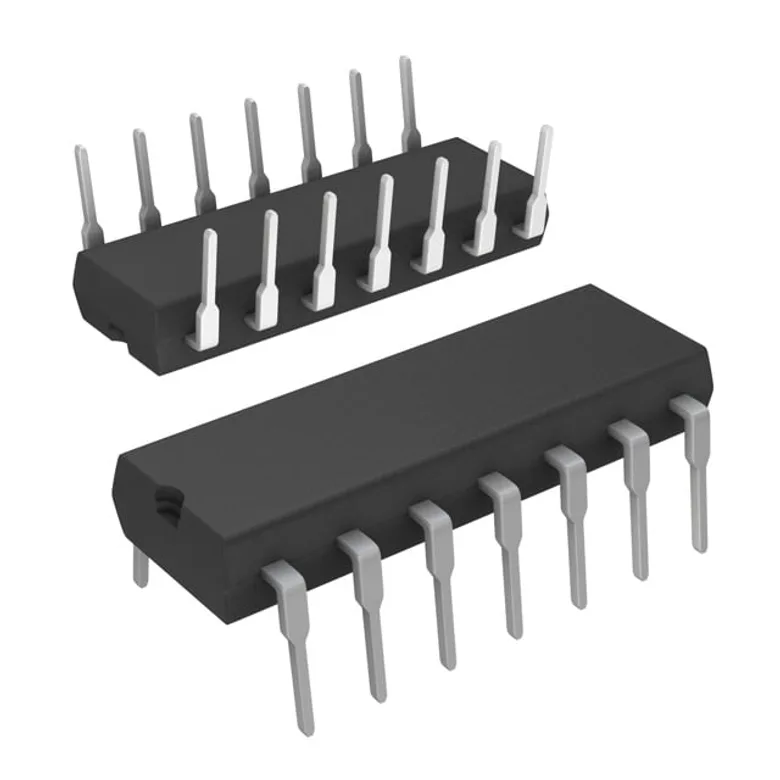

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics NE556N
Manufacturer
Manufacturer Product Number
NE556N
Description
IC OSC TIMER DUAL 500KHZ 14-DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
555 Type, Timer/Oscillator (Dual) IC 500kHz 14-DIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Voltage - Supply
4.5V ~ 16V
Count
-
Mounting Type
Through Hole
Supplier Device Package
14-DIP
Frequency
500kHz
Package / Case
14-DIP (0.300", 7.62mm)
Type
555 Type, Timer/Oscillator (Dual)
Current - Supply
20 mA
Documents & Media
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
NE556N
599561
497-1965-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 4.000 ₫ 4.000 ₫
4.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
6,000
4.000 ₫
24.000.000 ₫
MOQ 6,000 · Order multiple 6,000
