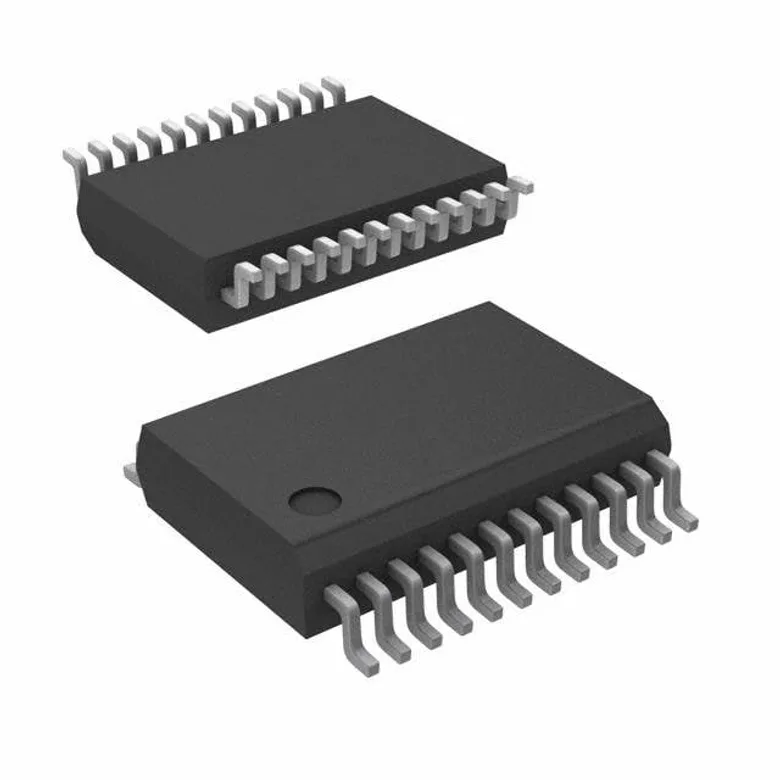

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STP16DP05PTR
Manufacturer
Manufacturer Product Number
STP16DP05PTR
Description
IC LED DRVR LINEAR 100MA 24QSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC LED DRVR LINEAR 100MA 24QSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Operating Temperature
-40°C ~ 125°C (TA)
Applications
-
Voltage - Output
20V
Current - Output / Channel
100mA
Internal Switch(s)
Yes
Mounting Type
Surface Mount
Number of Outputs
16
Supplier Device Package
24-QSOP
Dimming
-
Frequency
30MHz
Package / Case
24-SSOP (0.154", 3.90mm Width)
Type
Linear
Voltage - Supply (Min)
3V
Voltage - Supply (Max)
5.5V
Topology
Shift Register
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Related Documents
Additional Resources
Attribute
Description
Part Number Alias
STP16DP05PTR
2021165
497-8528-2-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 34.000 ₫ 34.000 ₫
34.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
34.000 ₫
85.000.000 ₫
5,000
33.000 ₫
165.000.000 ₫
7,500
33.000 ₫
247.500.000 ₫
MOQ 2,500 · Order multiple 2,500
Substitutes
STP16DP05PTR
IC LED DRVR LINEAR 100MA 24QSOP
34.000 ₫ STMicroelectronics
