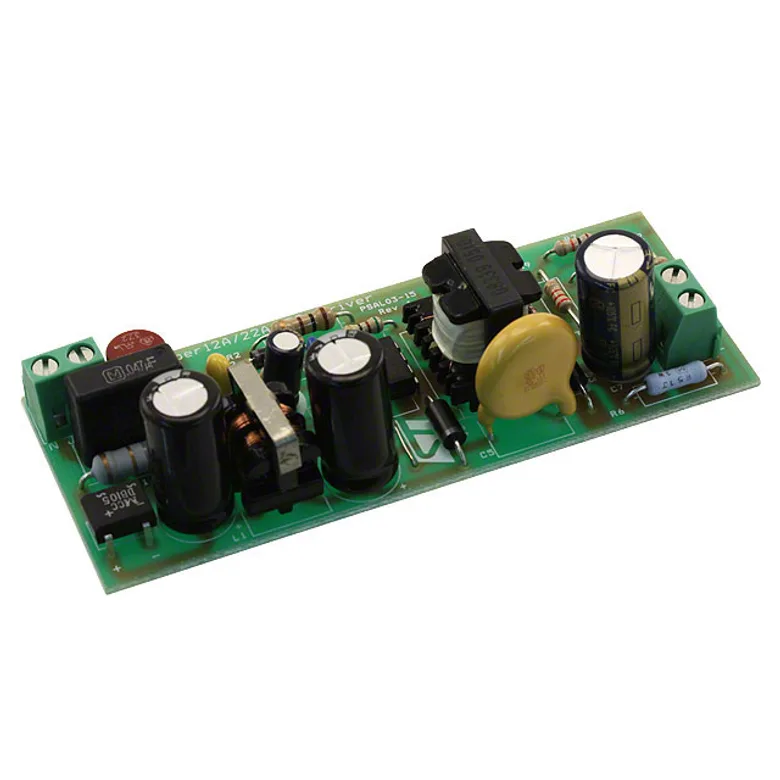

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics VIPER22-LED-EV
Manufacturer
Manufacturer Product Number
VIPER22-LED-EV
Description
EVAL BOARD FOR VIPER22A
Manufacturer Standard Lead Time Contact us
Detailed Description
EVAL BOARD FOR VIPER22A
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Contents
Board(s)
Voltage - Output
28V
Current - Output / Channel
1.05A, 700mA or 350mA
Features
-
Voltage - Input
90 ~ 264 VAC
Utilized IC / Part
VIPer22A
Note
-
Outputs and Type
1 Isolated Output
Documents & Media
Resource Type
Link
Datasheets
Reference Designs
Design Resources
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
VIPER22-LED-EV
806368
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
For Use With
VIPER22ADIP-E
IC OFFLINE SWITCH FLYBACK 8DIP
30.000Â â‚« STMicroelectronics
VIPER22AS-E
IC OFFLINE SWITCH FLYBACK 8SOIC
65.000Â â‚« STMicroelectronics
VIPER22ASTR-E
IC OFFLINE SWITCH FLYBACK 8SOIC
31.000Â â‚« STMicroelectronics
VIPER22ASTR-E
IC OFFLINE SWITCH FLYBACK 8SOIC
31.000Â â‚« STMicroelectronics
VIPER22ASTR-E
IC OFFLINE SWITCH FLYBACK 8SOIC
31.000Â â‚« STMicroelectronics
