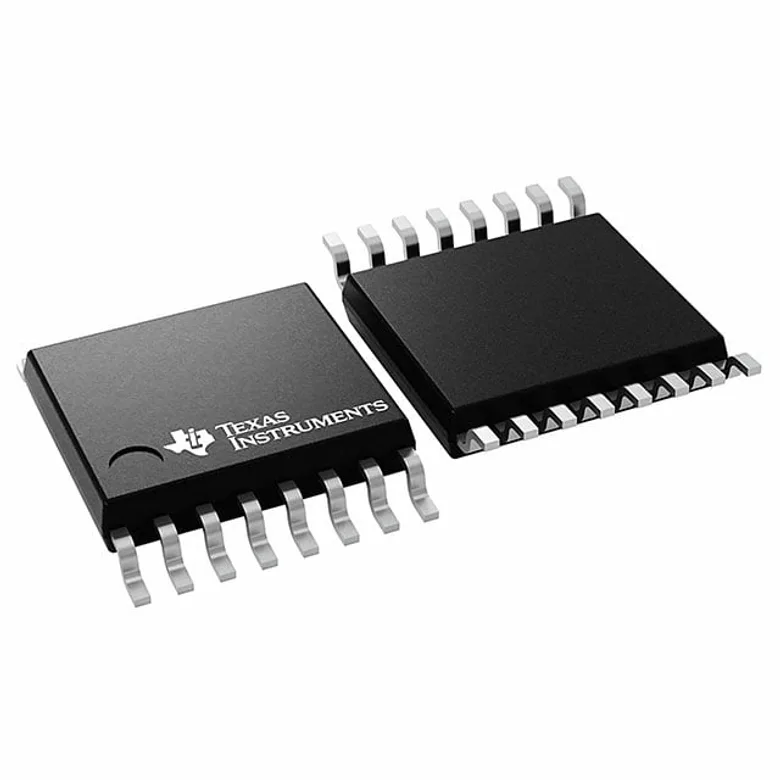

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments CD14538BPWR
Manufacturer
Manufacturer Product Number
CD14538BPWR
Description
IC MMV 2-CIR 100-NS 16-TSSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC MMV 2-CIR 100-NS 16-TSSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Logic Type
Monostable
Operating Temperature
-55°C ~ 125°C
Propagation Delay
100 ns
Independent Circuits
2
Current - Output High, Low
6.8mA, 6.8mA
Mounting Type
Surface Mount
Supplier Device Package
16-TSSOP
Schmitt Trigger Input
Yes
Package / Case
16-TSSOP (0.173", 4.40mm Width)
Voltage - Supply
3 V ~ 18 V
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
CD14538BPWR
404253
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
