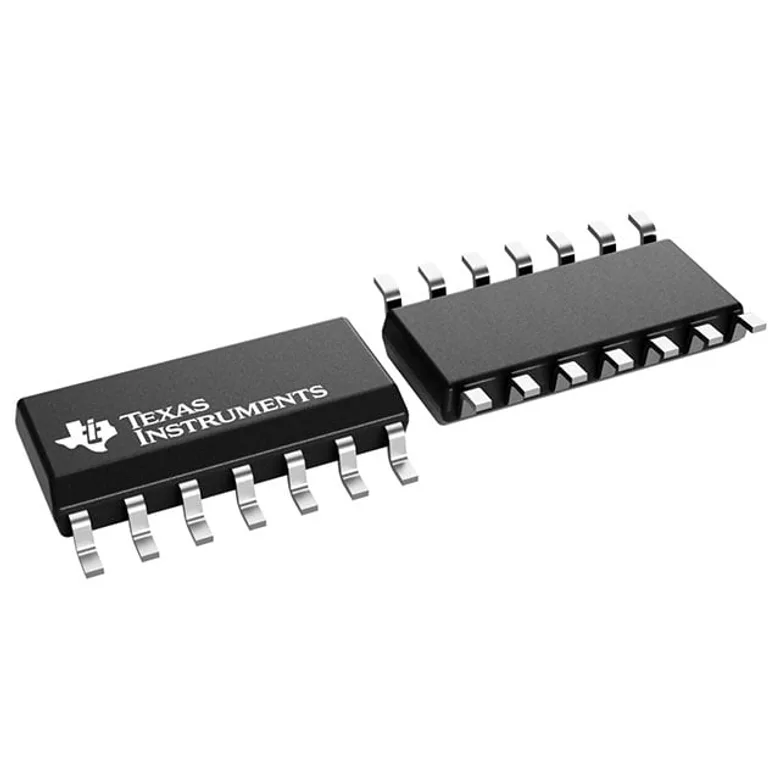

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments CD4011BM
Manufacturer
Manufacturer Product Number
CD4011BM
Description
IC GATE NAND 4CH 2-INP 14SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC GATE NAND 4CH 2-INP 14SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Logic Type
NAND Gate
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
3V ~ 18V
Features
-
Current - Output High, Low
3.4mA, 3.4mA
Number of Inputs
2
Mounting Type
Surface Mount
Supplier Device Package
14-SOIC
Input Logic Level - High
3.5V ~ 11V
Input Logic Level - Low
1.5V ~ 4V
Max Propagation Delay @ V, Max CL
90ns @ 15V, 50pF
Package / Case
14-SOIC (0.154", 3.90mm Width)
Number of Circuits
4
Current - Quiescent (Max)
1 µA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
CD4011BM
376606
296-3507-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 5,725
Packaging Quantity Unit Price Ext Price
1 29.000 ₫ 29.000 ₫
29.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
29.000 ₫
29.000 ₫
10
21.000 ₫
210.000 ₫
50
18.000 ₫
900.000 ₫
100
17.000 ₫
1.700.000 ₫
250
16.000 ₫
4.000.000 ₫
500
15.000 ₫
7.500.000 ₫
1,000
15.000 ₫
15.000.000 ₫
2,500
14.000 ₫
35.000.000 ₫
5,000
14.000 ₫
70.000.000 ₫
MOQ 1 · Order multiple 1
