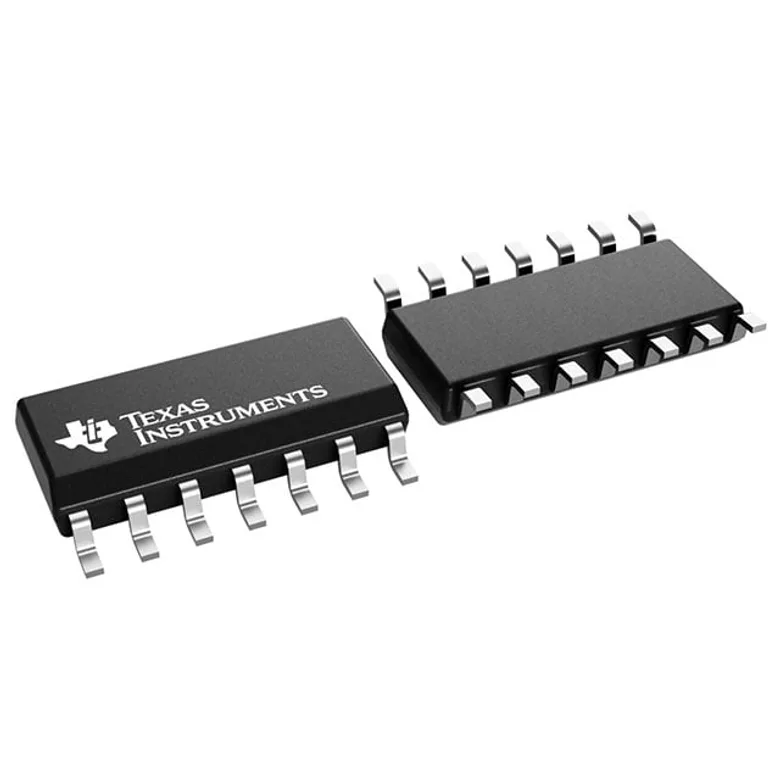

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments CD4047BMT
Manufacturer
Manufacturer Product Number
CD4047BMT
Description
IC AMV 1-CIR 80-NS 14-SOIC
Manufacturer Standard Lead Time 10 Days
Detailed Description
IC AMV 1-CIR 80-NS 14-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Logic Type
Astable, Monostable
Operating Temperature
-55°C ~ 125°C
Propagation Delay
80 ns
Independent Circuits
1
Current - Output High, Low
6.8mA, 6.8mA
Mounting Type
Surface Mount
Supplier Device Package
14-SOIC
Schmitt Trigger Input
No
Package / Case
14-SOIC (0.154", 3.90mm Width)
Voltage - Supply
3 V ~ 18 V
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
CD4047BMT
10664453
2156-CD4047BMT-ND
296-CD4047BMTDKR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2,500
Packaging Quantity Unit Price Ext Price
1 28.000 ₫ 28.000 ₫
28.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
290
28.000 ₫
8.120.000 ₫
MOQ 290 · Order multiple 290
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
30.000 ₫
30.000 ₫
MOQ 1 · Order multiple 1
