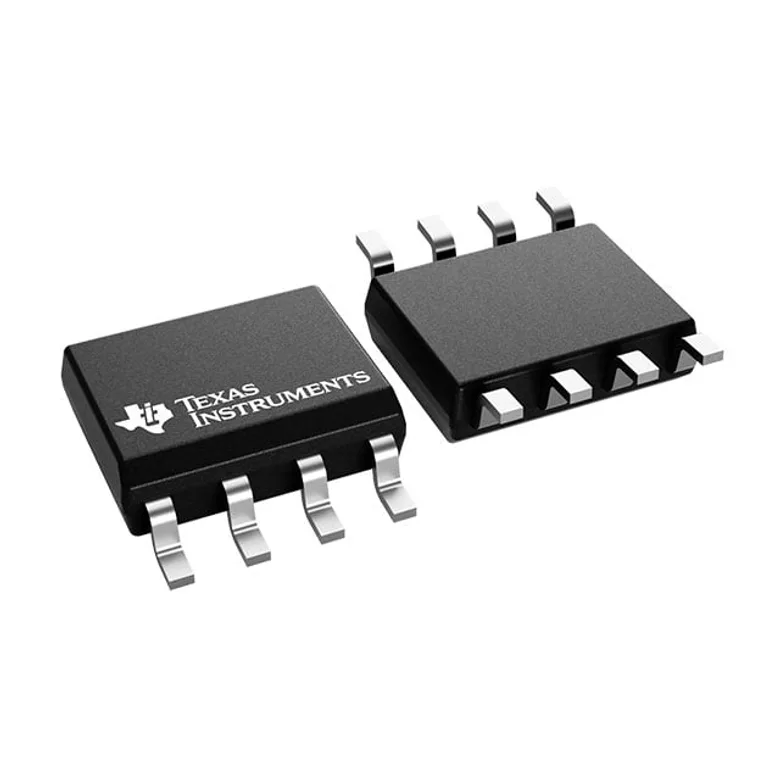

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments ISO7021FDR
Manufacturer
Manufacturer Product Number
ISO7021FDR
Description
DGTL ISOLTR 3KV 2CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 3KV 2CH GP 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
1.71V ~ 1.89V, 2.25V ~ 5.5V
Data Rate
4Mbps
Technology
Capacitive Coupling
Voltage - Isolation
3000Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
1/1
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
5ns, 5ns
Common Mode Transient Immunity (Min)
100kV/µs
Propagation Delay tpLH / tpHL (Max)
165ns, 165ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
10ns
Type
General Purpose
Number of Channels
2
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
ISO7021FDR
10711638
296-ISO7021FDRCT-ND
296-ISO7021FDRDKR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 144
Packaging Quantity Unit Price Ext Price
1 84.000 ₫ 84.000 ₫
84.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
84.000 ₫
84.000 ₫
10
63.000 ₫
630.000 ₫
25
58.000 ₫
1.450.000 ₫
100
52.000 ₫
5.200.000 ₫
250
50.000 ₫
12.500.000 ₫
500
48.000 ₫
24.000.000 ₫
1,000
47.000 ₫
47.000.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
84.000 ₫
84.000 ₫
10
63.000 ₫
630.000 ₫
25
58.000 ₫
1.450.000 ₫
100
52.000 ₫
5.200.000 ₫
250
50.000 ₫
12.500.000 ₫
500
48.000 ₫
24.000.000 ₫
1,000
47.000 ₫
47.000.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
ISO7021FD
DGTL ISOLTR 3KV 2CH GP 8-SOIC
102.000 ₫ Texas Instruments
Substitutes
ISO7021DR
DGTL ISOLTR 3KV 2CH GP 8-SOIC
84.000 ₫ Texas Instruments
ISO7021FD
DGTL ISOLTR 3KV 2CH GP 8-SOIC
102.000 ₫ Texas Instruments
ISO7021D
DGTL ISOLTR 3KV 2CH GP 8-SOIC
102.000 ₫ Texas Instruments
