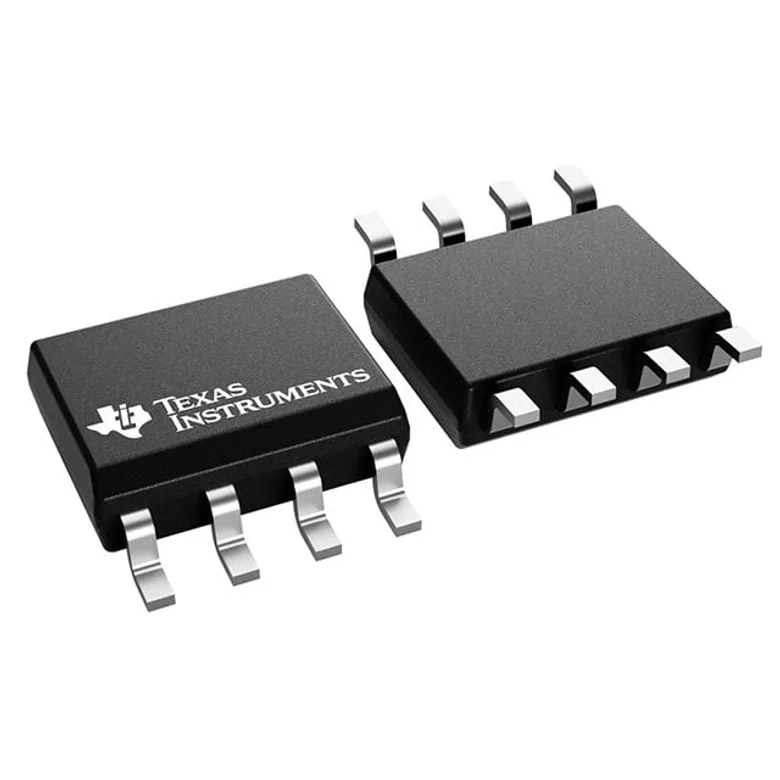

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments PCA9536DR
Manufacturer
Manufacturer Product Number
PCA9536DR
Description
IC XPNDR 400KHZ I2C SMBUS 8SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC XPNDR 400KHZ I2C SMBUS 8SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-40°C ~ 85°C
Interrupt Output
No
DigiKey Programmable
Not Verified
Voltage - Supply
2.3V ~ 5.5V
Output Type
Push-Pull
Features
POR
Mounting Type
Surface Mount
Clock Frequency
400 kHz
Supplier Device Package
8-SOIC
Interface
I2C, SMBus
Number of I/O
4
Package / Case
8-SOIC (0.154", 3.90mm Width)
Current - Output Source/Sink
10mA, 25mA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
PCA9536DR
1629334
296-21765-6-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 41.000 ₫ 41.000 ₫
41.000 ₫
All prices are shown in the selected currency
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
41.000 ₫
41.000 ₫
10
30.000 ₫
300.000 ₫
25
27.000 ₫
675.000 ₫
100
24.000 ₫
2.400.000 ₫
250
23.000 ₫
5.750.000 ₫
500
22.000 ₫
11.000.000 ₫
1,000
22.000 ₫
22.000.000 ₫
MOQ 1 · Order multiple 1
