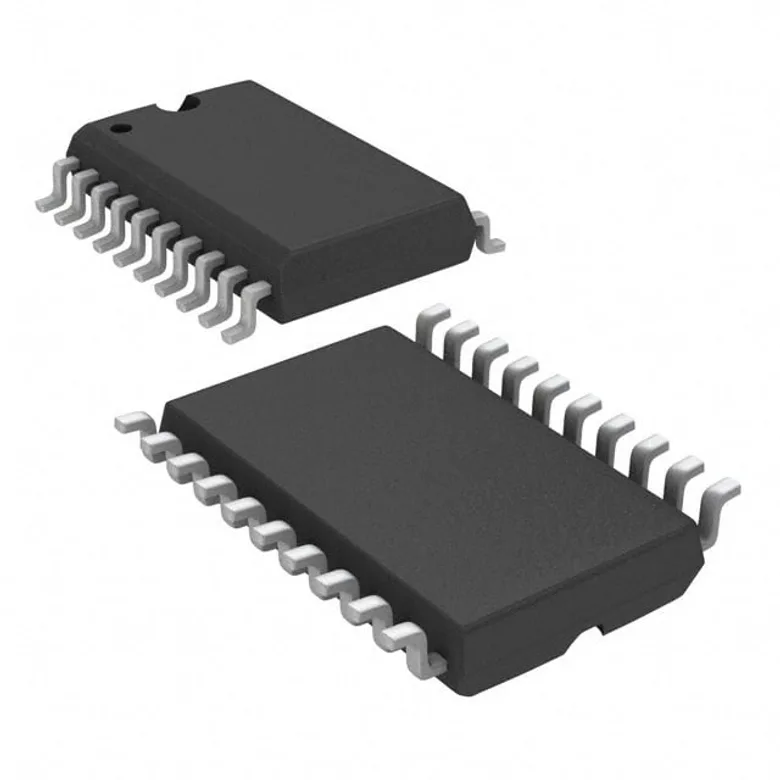

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments SN74LVTH574DW
Manufacturer
Manufacturer Product Number
SN74LVTH574DW
Description
IC FF D-TYPE SINGLE 8BIT 20SOIC
Manufacturer Standard Lead Time 10 Days
Detailed Description
IC FF D-TYPE SINGLE 8BIT 20SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Number of Bits per Element
8
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Supply
2.7V ~ 3.6V
Output Type
Tri-State, Non-Inverted
Current - Quiescent (Iq)
190 µA
Current - Output High, Low
32mA, 64mA
Trigger Type
Positive Edge
Mounting Type
Surface Mount
Clock Frequency
150 MHz
Input Capacitance
3 pF
Supplier Device Package
20-SOIC
Max Propagation Delay @ V, Max CL
4.5ns @ 3.3V, 50pF
Number of Elements
1
Package / Case
20-SOIC (0.295", 7.50mm Width)
Type
D-Type
Function
Standard
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
SN74LVTH574DW
13525045
2156-SN74LVTH574DW-ND
296-1719-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 107,934
Packaging Quantity Unit Price Ext Price
1 20.000 ₫ 20.000 ₫
20.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
395
20.000 ₫
7.900.000 ₫
MOQ 395 · Order multiple 395
Tube · Digikey
Quantity Unit Price Ext Price
1
28.000 ₫
28.000 ₫
10
20.000 ₫
200.000 ₫
25
18.000 ₫
450.000 ₫
100
16.000 ₫
1.600.000 ₫
250
15.000 ₫
3.750.000 ₫
500
15.000 ₫
7.500.000 ₫
1,000
14.000 ₫
14.000.000 ₫
2,500
14.000 ₫
35.000.000 ₫
5,000
13.000 ₫
65.000.000 ₫
MOQ 1 · Order multiple 1
Substitutes
SN74LVTH574DW
IC FF D-TYPE SINGLE 8BIT 20SOIC
20.000 ₫ Texas Instruments
SN74LVT574DW
IC FF D-TYPE SINGLE 8BIT 20SOIC
52.000 ₫ Texas Instruments
