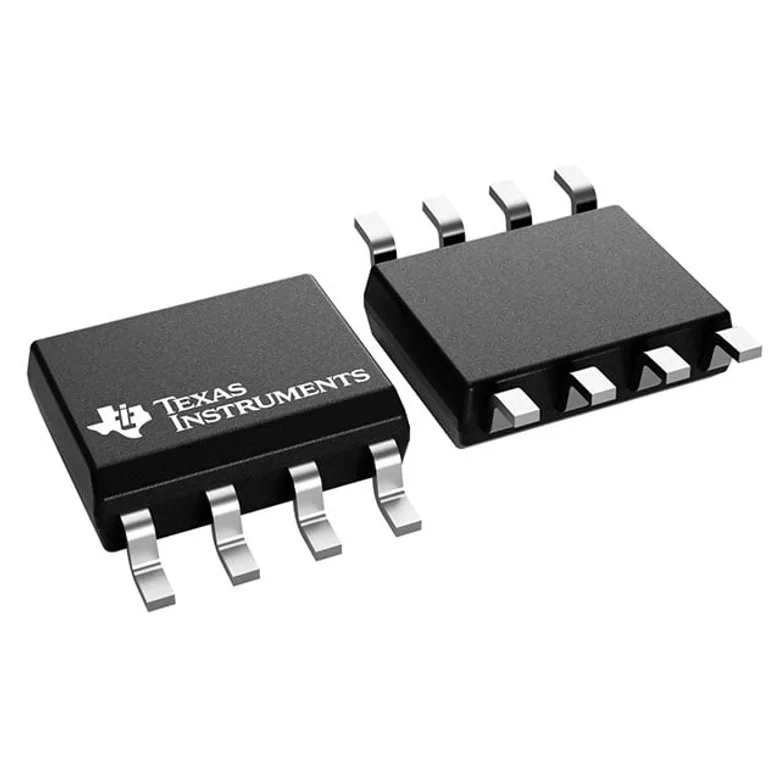

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments UC560DP
Manufacturer
Manufacturer Product Number
UC560DP
Description
IC SCSI SOURCE/SINK REG 8-SOIC
Manufacturer Standard Lead Time 10 Days
Detailed Description
SCSI Terminator 27 Terminations 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Number of Terminations
27
Operating Temperature
0°C ~ 70°C
Voltage - Supply
4V ~ 6V
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Type
SCSI
Documents & Media
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
UC560DP
11536903
2156-UC560DP-TI-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 55,639
Packaging Quantity Unit Price Ext Price
1 43.000 ₫ 43.000 ₫
43.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
182
43.000 ₫
7.826.000 ₫
MOQ 182 · Order multiple 182
